Automatic Wrap Around Labeling Machine For Round Bottle







2 months ago

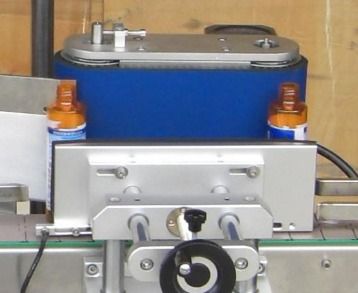

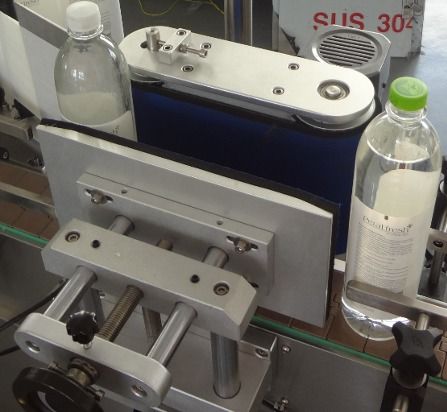

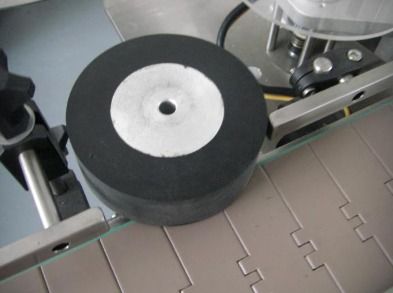

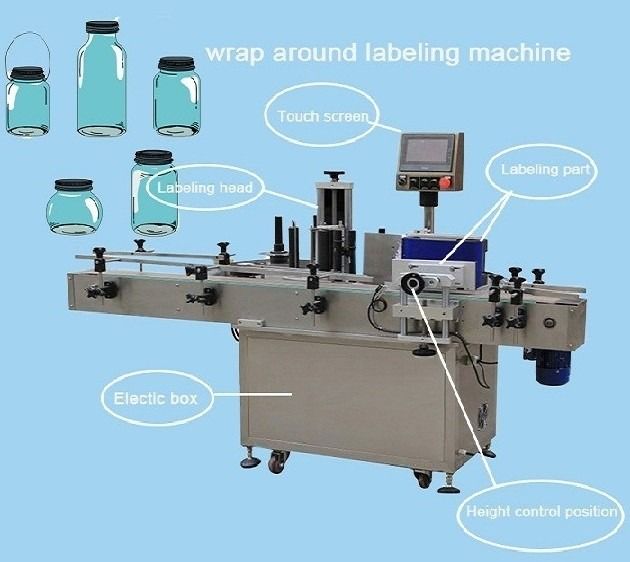

Introduce: The machine is made of anticorrosive stainless steel with convenient cleaning and disinfection, meeting national regulations and requirements for food machinery and food sanitation. The machine adopts imported optical fiber infrared sensor, which provides accurate position control, imported PLC and 7" touch screen human-machine interface with parameterized production control and simple operation. It is equipped with height adjusting handwheel, which makes it convenient to adjust the height of the labeling head to meet the needs of products of different diameters. It adopts automatic bottle feeding hopper without the need of manually putting the bottles one by one, realizing simple and quick operation. Technical parameter: Brand: VKPAK Capacity: 0-130 bottles/min Label length: 10-305mm, if more big label, customized Bottle diameter: Below 121mm, if more big bottle, customized Label height: 10-182mm, if more big label, customized Conveyor speed: 0-40m/min Labelling error: < ±0.8mm Reel label outer diameter: Max.360mm Machine size: L2010 * W800 * H1680 mm Machine weight: 300KG Reel label Inner diameter: 76mm Power supply: 710W, 220V, 50/60Hz, 1 phase URL: Machine function: 1, This auto labeler is equipped with PLC and HMI control panel, it can help you adjust working data easily. 2, Machine can be used for round bottles/jars/cans/any cylinder products. It is made of high quality material and imported machine parts.This machine is widely used in food,drinks,cosmetics and daily chemical industries. 3, KINCO stepper motor or servo motor driven on labeling head. 4. Stainless steel 304/316 frame construction and components are standard. 5. Labeling speed is synchronized with conveyor speed automatically to ensure quality labeling; 6. Date printing on labels is available. Touch screen Touch screen is Chinese and English optional operating interface, convenient and intuitive, powerful data memory function, can store multiple groups of labeling parameter, with production counting function, power saving function. Parameter setting protection function, convenient production management, different product labeling switch one key to achieve, without repeated debugging, simple and fast; And has the perfect fault prompt and the help function. Ribbon Printer It can be equipped with ribbon printer machine, which can print production date and batch number online, reduce the packing process of bottle and improve production efficiency. PLC control system Adopt Japanese Mitsubishi PLC control system, a more stable performance, Keep the machine safe and running steadily. Wrap around labeling device Automatically detect the bottle, separate the bottle and stick label on bottle, suitable for more different size bottle and label. Bottle Dispersing The application is flexible , the bottle standing type labeling machine is provided with an automatic bottle separating function ,can be produced in a single machine , and also can be connected with the production line . High quality labeling head 1. It can be adjusted automatically according to the label height. 2. Label and feeding label roller nearly 2/3 of the contact area, great avoid label and the roller sliding, improve accuracy of feeding label.
